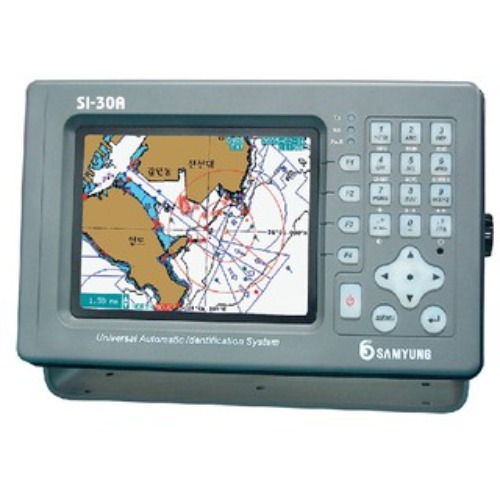

Ais Samyung si30a

Ais Samyung Si30a || Samyung Ais Si30a || Ais Si-30a || Samyung Ais

Automatic Identification System ( AIS ) SAMYUNG SI 30A adalah peralatan yang dibutuhkan setiap kapal laut, untuk memenuhi standard keselamatan.

Features :

• Class-A Universal AIS Complying with IMO MSC. 74( 69) Annex3, IEC 61993-2,
ITU-R M.1371-3, ITU-R M.493-13, ITU-R M.825( DSC) , IEC-60945, IEC-61162-1/ 2.
• Displaying navigational data based on Dynamic / Static data.
• Completely compatible with all system using NMEA standard.
• Edition of user message on navigation & ship securities is available.
• GLONASS/ GPS function available receiving Signal from Russian Satellite.
• Interfaces with RADAR, ECDIS, GYRO COMPASS, and external GPS, etc.
• Easy identification on other ship’ s status by providing electronic chart data.
• System self-restoring function enhances stability.
• Adopted user-friendly one touch keypad.

Specifications

¶ General
• Power Consumption : 50W peak / 10W average( Main Unit)
• Power Voltage : 12V DC -10% + 30% ( DC10.8V~ 15.6V)
• Power supply ( SP-700AD) : Input 24V DC -10% + 30% / 110V AC / 220V AC
• Default Frequencies : AIS1 ( CH 87B) : 161.975 MHz
AIS2 ( CH 88B) : 162.025 MHz
DSC ( CH70) : 156.525 MHz
• Frequency range : 156.025 ~ 162.025 MHz
• Transponder size/ weight : 221 x 165 x 95 mm, 1.5 kg
• MKD Dispaly : 5.6 olor TFT LED
• MKD size/ weight : 255 x 162 x 75 mm, 0.9 kg
• GPS size/ weight: 90 x 65mm ( + 140mm mounting bar) 0.2kg

¶ AIS Transmitter
• Power output : 12.5W or 1.0W( 41dBm ± 1.5 dB or 30dBm ± 1.5 dB)
• Antenna impedance : 50 ohms( SO-239)
• Channel spacing : 25kHz

¶ AIS Receivers
• Sensitivity : ( PER) < 20% at -107 dBm
• Modulation : GMSK
• Data rate : 9600 bits/ s
• Frequency stability : < ± 1 ppm
• Co-Channel : 10dB
• Adjacent Channel : 70dB
• IMD : 65dB
• Blocking : 84dB

¶ DSC Receivers
• Sensitivity : BER < 10-4 at 107 dBm
• Modulation : FSK ( 1300 Hz/ 2100 Hz)

¶ Serial inputs/ outputs
• SENS1/ 2/ 3/ 4 : IEC61162-1/ 2 ( input only)
• LONG/ AUX/ PILOT/ RTCM : IEC61162-1/ 2 ( input & output)
• Display : RS422 non-isolated

¶ GPS Antenna & Receiver
• Antenna : PATCH ANTENNA / TNC ( RG-58U)
• Receiver Type : 16channel, L1 frequency, C/ A code
• Accuracy : Acquisition -140 dBm / Tracking -150 dBm

¶ Environment
• Operation temperature : -15Ú C to + 55Ú C
• Storage temperature : -25Ú C to + 75Ú C
• Vibration : IEC 60945
