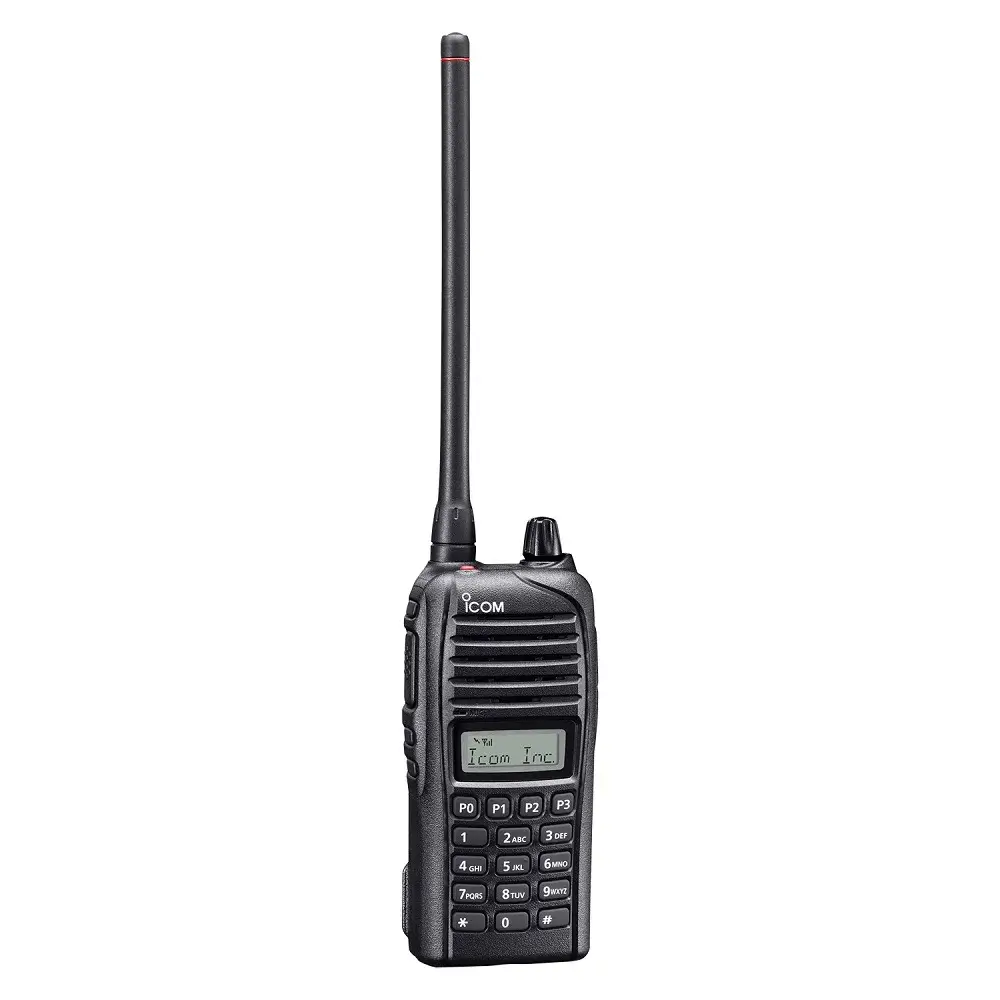

ICOM IC-F4230DT

Category: RADIO KOMUNIKASI - Brand: ICOM PRODUCT

Radio Trunking Multi-situs IDAS ™ dengan Perlindungan Anti Air yang unggul Pengoperasian mode digital IDAS ™ ICOM IC-F4230D menyediakan operasi

Hubungi Kami

Minta Penawaran

Untuk melakukan pembayaran
silahkan isi form berikut :

Full Name *

Whatsapp Number *

Email *

Address *

ICOM IC-F4230DT

Radio Trunking Multi-situs IDAS ™ dengan Perlindungan Anti Air yang unggul Pengoperasian mode digital IDAS ™ ICOM IC-F4230D menyediakan operasi

Rp. 3.000.000

Qty : 1 pcs

Total Pembayaran :

Rp. 3.000.000

Informasi pengiriman dan biaya kirim akan di hubungi  oleh admin melalui whatsapp

IP67 waterproof and dust-tight protection

ICOM IC-F4230D series provides outstanding protection against water and dust equivalent to IP67. ICOM IC-F4230D series can withstand 1m depth of water for 30 minutes and its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.

Easy to hear in noisy areas

The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000mW* audio output from the large speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.

* Typical with internal speaker

Channel announcement

When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

8-character LCD

An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.

Roaming scan

In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.

IDAS™ digital mode features

Up to 500 individual and up to 500 group ID aliases
(Each for single-site/multi-site/conventional)
PTT ID and ANI
SDM (Short Data Message)
Status
RAN (Radio Access Number)
Radio check (RX)
Stun/kill/revive (RX)
Call alert
Remote monitor (RX)
Emergency
Digital voice scrambler
ATB (All Trunks Busy) ring back

* TX: Transmit, RX: Receive

Other features

CTCSS/DTCS encoder/decoder*
Up to 128 memory channel with 8 zones
Optional HM-168LWP, waterproof speaker-mic
Low battery alert
2-step power save
Voting scan
Time out timer
Talk around function
Lone worker function
Surveillance function
Forced narrow function*

* Analog mode only
Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)

Supplied accessories

Battery pack, BP-232WP
Belt clip, MB-94R
Antenna
Desktop charger, BC-160*
AC adapter, BC-145SA/SE*

General :

		IC-F3230DT/DS	IC-F4230DT/DS
Frequency coverage		136–174 MHz	350–400 MHz 400–470 MHz 450–512 MHz 450–520 MHz
Number of channels		128 channels/8 zones
Channel spacing (Varies according to version)		25*/12.5/6.25 kHz
Type of emission		16K0F3E*/11K0F3E/8K50F3E/4K00F1E/F1D
Current drain (approx.)	Tx	1.3A (High)
Current drain (approx.)	Rx	400mA/100mA (Max. audio/Standby)
Dimensions (W×H×D) (projections not included		53×120×37 mm; 2.09× 4.72×1.46 in (With BP-232WP)
Weight (approx.)		340g; 12oz (With MB-94R, BP-232WP & antenna)

Transmitter

	IC-F3230DT/DS	IC-F4230DT/DS
RF output power (at 7.5V DC)	5W, 2W, 1W (Hi, L2, L1)	4W, 2W, 1W (Hi, L2, L1)
Spurious emissions	75dB typ.
Frequency stability	±1.0ppm
Audio harmonic distortion	1.0/2.0% typ. (AF 1kHz 40% deviation, W/N)
FSK error	2% typ.
FM Hum and Noise	52/46dB typ. (W/N)	46/40dB typ. (W/N)

Receiver

	IC-F3230DT/DS	IC-F4230DT/DS
Sensitivity (Analog 12dB SINAD) (Digital 5% BER)	0.23μV typ. 0.18μV typ.	0.24μV typ. 0.18μV typ.
Adjacent channel selectivity	77/71/58dB typ. (W/N/D)	74/67/58dB typ. (W/N/D)
Spurious response rejection	90dB typ.	80dB typ.
Intermodulation rejection	75/75/70dB typ. (W/N/D)	76/76/72dB typ. (W/N/D)
Audio output power (at 5% distortion, 8Ω load)	1000mW typ. (Internal SP) 400mW typ. (External SP)

*	25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25kHz bandwidth.

Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 G Method, Proc.
Low Pressure Storage	500.5 I
Low Pressure Operation	500.5 II
High Temperature Storage	501.5 I
High Temperature Operation	501.5 II
Low Temperature Storage	502.5 I
Low Temperature Operation	502.5 II
Temperature Shock	503.5 I-C
Solar Radiation	505.5 I
Rain Blowing	506.5 I
Rain Drip	506.5 III
Humidity Induced	507.5
Salt Fog	509.5
Dust Blowing	510.5 I
Immersion	512.5 I
Vibration	514.6 I
Shock Functional	516.6 I
Shock Transit Drop	516.6 IV
